Cables

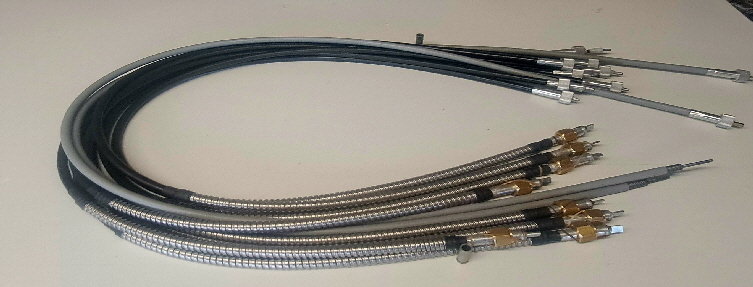

The speedometer/Tachometer cables we supply are made in house by

Timeless Motorcycles and are made to Smiths original specification.

This point is critical to prevent damage to your instrument. In recent years, many imported cables have been supplied with an inner cable that is too long. An over length inner places constant upward pressure on the instrument mechanism, leading to premature wear or complete failure.

Our fitment guide library ensures we supply the correct cable for the exact year and model of your machine, for both speedometer and rev counter/tachometer applications. If you are unsure of your cable length, or if you believe your machine differs from the guide, please measure the outer cable length so we can supply the correct item.

It is important to note that cables are not interchangeable across different years or instrument types. Even small changes in nut length, drive type, or inner cable specification will affect fit and can damage the instrument if the wrong type is fitted.

At the speedometer head, there are generally only two cable nut types:

Short nut

Long nut

Chronometric instruments fitted up to 1964 used the short nut type. When Smiths introduced the magnetic instruments from late 1964 onward, the design changed to the long nut fitting.

The smaller 60 mm magnetic speedometers, used from the mid 1950s, also underwent a cable and instrument redesign in late 1964, so correct identification is essential.

PLEASE SEE OUR CABLE FITMENT GUIDE BELOW.

New Chronometric instruments made after 1964 mainly for police use had an extended neck at the bottom of the threads like the magnetic type. This type of instrument takes a very special cable which we can supply in any length to order. Fitting the incorrect cable will result in serious instrument damage. We can in most cases supply the early type Jaeger shaft driven chronometric cables in two forms. i.e. original type metal outer casing or rubber covered..

Cable prices:

Chronometric & Magnetic cables SQ to SQ

Up to 48” (4’) £26.99

Up to 72” (6’) £28.99

Over 72” (6’) please enquire

Chronometric & Magnetic cables SQ to SPADE (these cables include a discounted spade end adapter, however if you do not require a spade end prices will be the same as above).

Up to 48” (4’) £29.99

Up to 72” (6’) £31.99

Over 72” (6’) please enquire

We can supply any length of cable in black or grey outer, with galvanized armour (full or part) or full rubber coated. Prices vary, so please contact us for a quote.

We also manufacture Jaeger cables rubber or galvanized. Up to 48” (4’) Priced at £45.99.

Prices excluding postage and will be calculated according to quantity and weight of items purchased, and shipping destination, Please telephone us with your credit card details.




	This is not a comprehensive list. Can’t find your cable? Give us a call with your requirements.

Speedometer cables

Make	Model	Year	Length
ARIEL	All models except 4G	1952 - 53	3’ 9”
ARIEL	Arrow, Super Sport	1964 - 66	3’ 1”
ARIEL	VH Red Hunter	1954 - 55	3’ 9”
ARIEL	KH Fieldmaster	1956 - 57	3’ 7”
AJS/ M/LESS	200CS- CSR, G9CS-CSR	1959	5’ 5”
AJS/ M/LESS	G9 Twin	1949 - 61	5’ 5”
AJS/ M/LESS	18- G80	1946 - 54	4’ 6”
AJS/ M/LESS	14 CSR, G2 CSR	1964 - 66	5’ 2”
AJS/ M/LESS	G12	1965 - 66	5’ 5”
BSA	D7 Bantam	1963 -	4’ 10 1/2”
BSA	D7 Bantam	1959 - 62	4’ 8”
BSA	D14/4, Bantam, Bushman	1968 -	4’ 10 1/2”
BSA	D10, Bantam	1966 -	4’ 10 1/2”
BSA	C15, B40	1959 - 62	4’ 8”
BSA	C15, C15t, C15s, C25, B40	1964 -	5’ 1”
BSA	C15,Spitfire C15 Sports Star	1961 -	4’ 8”
BSA	C15, Sports Star, SS80, B40	1963 -	4’ 10 1/2”
BSA	C15 Trials	1963 -	5’ 1”
BSA	B25, Starfire, B25SS,B25T, B44, B44SS	1968 -	5’ 3”
BSA	B50T, B50SS	1971 -	5’ 3”
BSA	B31, B32, B33, B34	1954 - 55	4’ 8”
BSA	B31, B33	1954 - 62	3’ 8”
BSA	B32, B34, Trials & Scrambles	1954 - 62	3’ 5”
BSA	B32, B34, & Competition Models	1962 -	3’ 10 3/4”
BSA	B44, Victor, Enduro	1968 -	5’ 6”
BSA	M20, M21, M33	1954 - 57	4’ 8”
BSA	M20, M21, M33	1958 - 62	4’ 2”
BSA	A7, A7SS, A10, (A10RR, A10SR)	1954 - 63	3’ 10 1/2”
BSA	A7, A10	1954 - 57	3’ 5”
BSA	A10 Road Rocket	1963 -	3’ 10 3/4”
BSA	A7,A10(A10RR, A10SR with cowl)	1958 - 62	3’ 8”
BSA	A50, A65	1962 -	3’ 8”
BSA	A50, A65	1963 - 64	3’ 5”
BSA	A50 Star & Royal Star, A65	1964 - 65	3’ 4”
BSA	A50 Royal Star & Wasp A65S, A65T, A65F	1966 - 71	5’ 6”
BSA	A75 Rocket 3	1969 - 70	5’ 8”
BSA	A75 Rocket 3	1971 -	5’ 5”
Douglas	Dragonfly	1955 - 57	5’ 2”
Douglas	Plus 80 90	1950 - 54	4’ 6”
Douglas	Mk V	1951 - 55	4’ 6”
Francis Barnett	Plover 73	1956	4’ 4”
Francis Barnett	Plover 78 86	1957 - 62	4’ 8”
Francis Barnett	Fulmer 88	1963 - 67	4’
Francis Barnett	Falcoln 62 Trials	1954 - 55	4’ 6”
Francis Barnett	Falcoln 87	1960 - 63	4’ 8”
Francis Barnett	Trials 83 85 92	1959 - 63	4’ 6”
Greeves	20TD Scottish Trials	1961 - 62	4’ 8”
Greeves	20TE Trials	1963	4’ 10”
Greeves	24TD 24TE 24TES	1962	4’ 10”
Greeves	25D Fleetwing 25R Std	1955	4’ 10”
James	L1 Comet	1964 - 67	4’ 8”
James	L15 30C Cadet	1956	4’ 4”
James	L15A Flying Cadet	1960 - 62	4’ 7”
James	K7 8E Captain	1957 - 59	4’ 7”
James	L20 Captain	1964 - 67	4’ 8”
James	Commander	1957	4’ 7”
Norton	7 Dominator, ES2, 16H, Model 18, Big 4 19s	1954 - 55	4’ 6”
Norton	88 Dominator, Model 30	1954 - 56	4’ 9”
Norton	77, 88, 99 Dominator& SS Models	1956 - 66	5’ 7 1/2”
Norton	ES2, Manxman, Model 30, 19S & Nomad	1956 - 58	5’ 7 1/2”
Norton	ES2 Mk2	1965 - 66	5’ 5”
Norton	88 SS Dominator	1965 - 67	5’ 7 1/2”
Norton	99 Dominator, Atlas	1964- 67	5’ 9”
Norton	Manxman, 88SS	1964 -	5’ 9”
Norton	N15, N15CS	1966 - 67	5’ 9”
Norton	Comando 750, 850	1969 -	5’ 9”
Norton	P11A Ranger	1969 -	5’ 9”
Panther	25 35 45 50	1957 - 63	3’ 1”
Panther	M65 Spring Fr	1955 - 61	5’
Panther	M100	1950 - 54	4’ 6”
Panther	M100	1955	4’ 9”
Panther	M120S	1959 - 61	5’ 6”
Royal Enfield	Interceptor	1965 - 67	4’ 7”
Royal Enfield	Crusader Super 5	1962 - 63	4’ 4”
Royal Enfield	Continent\l GT	1964 - 67	4’ 6”
Royal Enfield	Bullet	1954 - 62	4’ 6”
Royal Enfield	Constellation	1958 - 63	4’ 6”
Sunbeam	S7	1949	3’ 5”
Sunbeam	S7	1950	3’ 10”
Sunbeam	S7 S8	1951 -58	3’ 5”
Triumph	T20, Tiger Cub	1954 -	4’ 1”
Triumph	T20, Tiger Cub	1955 - 56	4’ 1 1/2”
Triumph	T20, Tiger Cub	1957 - 62	4’ 10”
Triumph	T20, Tiger Cub	1963 - 66	4’ 10”
Triumph	T20, Tiger Cub	1966 - 67	5’ 1”
Triumph	T20, Super Cub	1968 -	4’ 10 1/2”
Triumph	T25SS, Blazer,	1966 - 70	5’ 5”
Triumph	TR25W Trophy	1969 -	5’ 5”
Triumph	T21, 3TA, T90, Tiger 90	1957 - 64	4’ 10”
Triumph	3TA, T90, Tiger 90	1964 - 67	4’ 10”
Triumph	T90 Tiger	1968	5’ 3”
Triumph	5T, T100, TR5, 6T	1954 -	3’ 9”
Triumph	5T, T100, 6T, T110, T120	1954 - 62	3’ 8”
Triumph	5TA, T100A, T100C, T100S	1959 - 63	4’ 10”
Triumph	T100, Tiger, T100C/S/R/T, Daytona	1968 -	5’ 3”
Triumph	6T, TR6, T120	1963 -	3’ 4 1/2”
Triumph	6T, T120,	1964 - 65	3’ 4 1/2”
Triumph	6T	1965 -	3’ 8”
Triumph	6T, TR6, TR6SP, T120	1966 - 70	5’ 5”
Triumph	TR6	1955 - 62	3’ 8”
Triumph	TR6	1964 - 65	3’ 4 1/2”
Triumph	TR6C, TR6R, T120	1971 - 73	5’ 6”
Triumph	T140, TR7	1973 - 78	5’ 6”
Triumph	T150, Trident	1969 - 70	5’ 8”
Triumph	T150, Trident	1971 - 73	5’ 5”
Triumph	T160, Trident	1974 - 76	6’ 0”
Triumph	T140, TR7, (veglia Instrument)	1979 -	5’ 11”
Velocette	MAC, MSS, Viper, Venom	1955 - 64	5’ 3”
Velocette	MSS, Thruxton, Viper, Venom	1964 - 67	5’ 3”
Velocette	LE	1964 - 70	2’ 9”
Vincent	Comet D	1955 - 56	2’ 4”
Vincent	Comet Std. C	1951 - 54	2’ 1”
Vincent	Victor	1955 - 56	3’ 1”
Vincent	Rapide D	1955 - 56	2’ 4”
Vincent	Black Prince	1955 - 56	3’ 1”
Vincent	Black Lightening	1949 - 55	3’ 1”
Vincent	Black Knight	1955 -56	3’ 1”

Tachometer cables

Make	Model	Year	Length
BSA	C25, B44 Enduro, B44 Roadster	1966 -	2’ 9”
BSA	B25, B44SS, B44 Victor Special	1969 - 70	2’ 7”
BSA	B50 Trial, B50SS, Gold Star	1971 -	2’ 7”
BSA	B25SS, B25T, Victor Trial	1971 -	2’ 1”
BSA	B32, B34 Gold Star	1954 - 57	3’ 2”
BSA	A10 Road Rocket	1954 - 58	3’ 2”
BSA	A 10 Super Road Rocket	1959 -	3’ 2”
BSA	A 10 Road Rocket	1960 - 61	2’ 10 1/2”
BSA	A 10 Spitfire	1961 -	2’ 10 1/2”
BSA	A 10 Super Rocket	1962 - 63	2’ 10 1/2”
BSA	A 10 Rocket Goldstar	1963 -	2’ 10 1/2”
BSA	A50W&RS, A65L, A65T, A65 Spitfire/Hornet	1964 -	2’ 9”
BSA	A65, Spitfire MK 2 & 3	1966 -	2’ 9”
BSA	A65 Firebird	1970 -	2’ 9”
BSA	A75 Rocket 3	1969 - 70	2’ 1”
BSA	A75 Rocket 3	1971 -	2’ 4”
Norton	500 S/S, 650 S/S, Manxman & 99	1963 - 64	2’ 8”
Norton	500 S/S, 650 S/S, Manxman & 99	1964 - 67	2’ 8”
Norton	Atlas & P11	1965 - 67	2’ 8”
Norton	P11 A Ranger,Commando 750, 850	P11 A Ranger Commando 750, 850	2’ 5”
Triumph	Tiger Cub Sports	1960 - 61	2’ 4”
Triumph	T20S, T20SL	1962 -	2’ 4”
Triumph	T20, T20SH, T20SS, Trials & Scrambler	1964 - 66	2’ 10 1/2”
Triumph	T25SS, Blazer, T25T Blazer Trial	1971 -	2’ 1”
Triumph	TR 25W Trophy	1970 -	2’ 7”
Triumph	T90 Tiger Ninety Sports	1966 - 67	2’ 4”
Triumph	T90 Tiger	1968 -	2’ 2 1/2”
Triumph	TR5, T100	1954 - 58	2’ 4”
Triumph	T100SC, T100SR	1966 -	2’ 4”
Triumph	T100SS,T100T, Daytona	1966 - 67	2’ 2 1/2”
Triumph	T100S, Tiger 100	1968 - 71	2’ 2 1/2”
Triumph	T100T,Daytona, T100, T100C, T100R	1968 -	2’ 2 1/2”
Triumph	T120	1962 -	2’ 4”
Triumph	T120, TR6, TR6SS	1964 - 65	2’ 10 1/2”
Triumph	T120 Bonneville, TR6C, TR6R, TR6SR	1966 - 70	2’ 4”
Triumph	T120 Bonneville, TR6C, TR6R,	1971 -	2’ 6”
Triumph	TR6, TR6S	1960- 62	2’ 4”
Triumph	T140, TR7, & T160 Trident	1973 - 78	2’ 6”
Triumph	T150 Trident	1969 - 70	2’ 1”
Triumph	T150 Trident	1971 - 73	2’ 4”
Triumph	T140, TR7 (Veglia Instrument)	1979 -	2’ 6”
Velocette	Viper, Venom	1956 - 64	3’ 0”
Velocette	Viper, Venom, Thruxton	1965 - 67	3’ 0”
Vincent	Grey Flash	1952 - 53	2’ 4”
Vincent	Black Lightening	1952 -56	2’ 4”
